Checking Fixture

Parameter

Mould Material	3Cr13, 3Cr17, 3Cr17NiMoV mould steel or Din 1.2316.
Size	Custom made
Die Strand	One
Testing Sample	Testing samples can be offered upon customers' request.
Types of molds that can be produced	Stamping molds, injection molds, metal injection molding molds.
Types of jigs that can be produced	Machining jigs, welding jigs, assembly jigs, test/inspection jigs.

Types Of Checking Fixture

The checking fixtures produced by our company mainly include the following types:

Stamping Part Checking Fixture

A Stamping Part Checking Fixture is a custom-built, high-precision quality control tool used to verify the dimensional accuracy, shape, and fit of complex metal-stamped components (like car body panels) after they're made, ensuring they meet strict specifications for "GO/NO-GO" acceptance, preventing defects and ensuring consistency in manufacturing.

Plastic Part Checking Fixture

A Plastic Part Checking Fixture is a custom-built quality assurance tool used to verify if manufactured plastic components meet precise design specifications, dimensions, and assembly requirements, acting as a "Go/No-Go" gauge that holds the part to check for defects like warpage, gaps, or misalignments, ensuring consistent quality in industries like automotive and aerospace.

Automotive Cubing Fixtures

Automotive cubing fixtures (or Meisterbocks) are full-size, highly precise, machined reference frames (often aluminum) that simulate a car's interior/exterior structure, used by engineers to check fit, function, and assembly of serial parts (doors, panels, seats, etc.) early in design, ensuring parts from different suppliers align perfectly before mass production, saving time and catching errors fast.

Advantages of Checking Fixture

Enhanced Quality Control

By providing a precise and reliable means of inspection, these fixtures help maintain high quality standards.

Reduced Rework

Early detection of defects allows for timely corrections, reducing the need for costly rework or scrapping of parts.

Consistency

Ensures that all panels produced are consistent and fit perfectly during the assembly process.

Efficiency

Streamlines the inspection process, enabling faster production times without compromising on quality.

Applications of Checking Fixture

Automotive Parts Assembly

Checking fixtures are widely used in the automotive industry or other industries to verify dimensions of components such as chassis elements, and interior fittings. They ensure that parts fit together correctly during assembly and meet stringent performance standards.

Mass Production Environments

If there are large quantities of identical or similar parts are produced, checking fixtures provides a cost-effective solution for ensuring uniformity and precision. This is crucial for meeting production targets without compromising on quality.

Replacement of Specialized Measuring Tools

Checking fixtures serves as a versatile alternative to specialized measuring tools like plug gauges and OD gauges. They offer simplicity in operation while still delivering accurate measurements, making them suitable for a wide range of manufacturing applications in automotive,aerospace,electronics and so on.

Different Materials of Checking Fixture

Steel: Excellent strength, wear resistance, affordability; types include carbon, stainless, alloy for specific properties.

Aluminum: Lightweight, corrosion-resistant, good for aerospace/auto, easy to machine.

Plastics (Delrin, Nylon): For non-metallic contact, chemical resistance, low friction, lighter weight.

Resins/Epoxy

Ideal for complex shapes, customized components, casting.

FRP (Fiber Reinforced Plastic)

Lightweight yet strong composite.

Wood/MDF

Used for simpler or less demanding applications.

Brass

Durable, corrosion-resistant, good for electrical/non-sparking needs.

Installation Steps for Checking Fixture

01/

Unpack And Inspect The Fixture
Carefully unpack the checking fixture and inspect it for any damage or missing parts. If you find any issues, contact your supplier right away.

02/

Position The Fixture
Place the checking fixture on the chosen location and use a measuring tape to ensure it's properly aligned. Make sure the fixture is level and that it's positioned in the correct orientation for the part being checked.

03/

Secure The Fixture
Once the fixture is in position, use the appropriate fasteners to secure it to the surface. This may involve drilling holes and using bolts or screws. Make sure the fasteners are tightened securely, but be careful not to overtighten them, as this can damage the fixture or the surface.

04/

Install The Components
If your checking fixture comes with additional components, such as clamps, gauges, or sensors, install these according to the instructions. Make sure each component is properly aligned and tightened.

05/

Connect The Electrical Or Pneumatic Systems (If Applicable)
Some checking fixtures may require electrical or pneumatic connections. If this is the case, follow the instructions to connect the systems safely. Make sure all connections are secure and that there are no leaks.

06/

Calibrate The Fixture
After the fixture is installed and all the components are connected, it's time to calibrate it. Calibration is the process of adjusting the fixture to ensure it provides accurate measurements. Follow the calibration instructions provided by the manufacturer to set up the fixture correctly.

Customizable Options

Multiple variant support (with/without sensors, different trims).

Modular quick-change components.

SPC checking fixture compatibility for statistical process control.

Integration with optical scanners and digital reporting systems.

Expertise in plastic parts checking fixture and stamping parts checking fixture and Cubing Fixture design.

Packaging and Shipping

Packaging	The checking fixture is securely mounted onto a custom wooden or metal skid. It is then wrapped in anti-corrosive VCI film and placed in a reinforced wooden export crate.
Shipping	Shipping by sea, by air, by express are acceptable. According to your requirements.

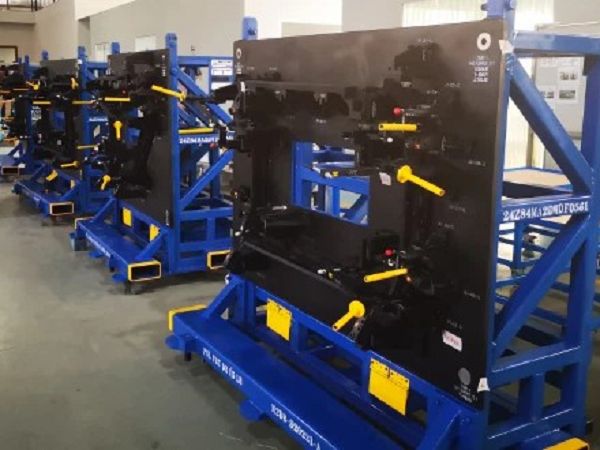

Our Factory

Raingo-Tech Co., Ltd was founded in 2007, headquartered in Dongguan. We operate four factories in Dongguan, Changsha, and Jakarta, with over 300 employees and an annual capacity of nearly 4,000 fixture sets.

productcate-600-450

FAQ

Q: How is the accuracy of your checking fixture guaranteed?

A: Each checking fixture undergoes rigorous CMM verification during and after manufacturing to ensure measurement precision. Our production process is certified under ISO 9001 and IATF 16949 quality standards, and we provide full inspection reports to guarantee the accuracy and reliability of every checking fixture we deliver.

Q: Can the checking fixture be adapted for different vehicle models?

A: Yes. Our checking fixture features a modular design with quick-change components, allowing efficient adaptation to multiple vehicle models. This flexibility provides manufacturers with versatile inspection solutions and reduces the need for completely new fixtures for each model variation.

Q: Can the checking fixture be customized for different vehicle models?

A: Yes. We offer fully customizable checking fixture solutions tailored to specific 3D data and GD&T requirements, ensuring compatibility with various Floor panel designs and vehicle types.

Q: How do you handle the weight and logistics of such a large checking fixture?

A: Our checking fixtures include integrated lifting points and detailed handling instructions. We provide expert crating and can manage global logistics, including customs clearance, for a complete solution.

Q: What is your standard delivery time for a custom Liftgate checking fixture?

A: Typical lead time is 6–8 weeks from design freeze to final acceptance, depending on fixture complexity.

Q: Can your checking fixture be modified for design changes?

A: Yes, our checking fixtures feature modular designs that allow for cost-effective modifications and updates to accommodate design changes.

We're known as one of the most experienced checking fixture enterprises in China, featured by quality products and good price. Please feel free to buy checking fixture in stock here and get quotation from our factory. We also accept customized orders.
