Plastic Part Checking Fixture

Home/Products/ Checking Fixture/Plastic Part Checking Fixture

Parameter

Material	Aluminum Casting, Aluminum Alloy, Aluminum Profile, Steel, Resin.
Drawing Format	AutoCAD(DXF,DWG), PDF, TIF, UG, Mastercam, CAD/CAM, IGES, STEP, Catia.
Tolerance	±0.05mm
Method	CNC Machining,Drilling, Milling, Turning, Lathe, Bending, aser Cutting.
Customization Service Provided	OEM/ODM

Types of Plastic Part Checking Fixture

The plastic part checking fixtures produced by our company mainly include the following types:

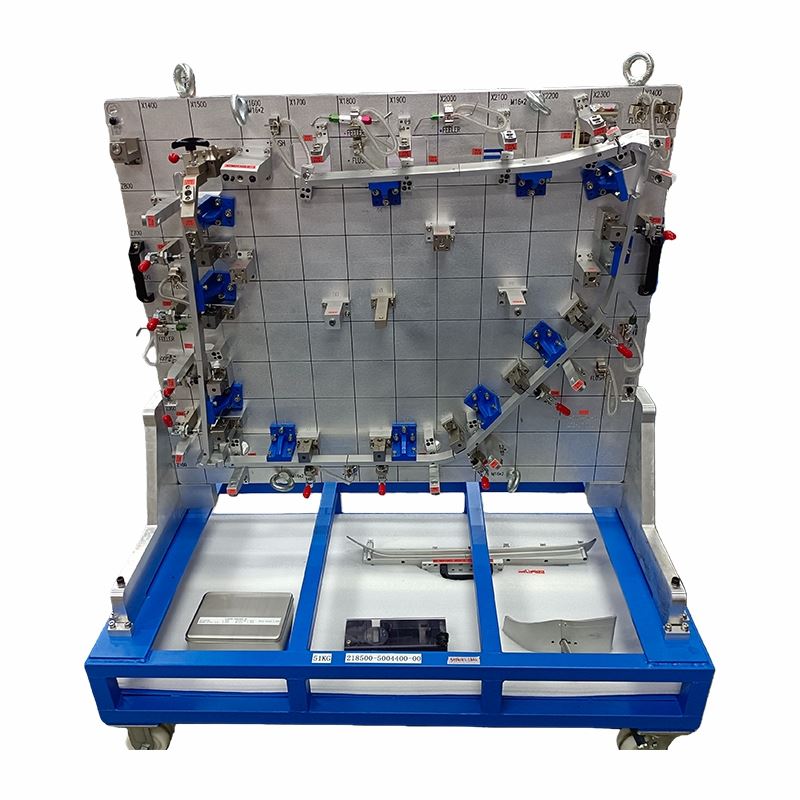

Head Light Assembly Checking Fixture

Modern headlights are complex systems critical for vehicle safety, aesthetics, and aerodynamics. Our Headlight Assembly Checking Fixture delivers a complete inspection solution for comprehensive validation of the entire headlamp unit.

Instrument Panel Checking Fixture

Our master checking fixture and gauge validates the entire instrument panel assembly's integration into the vehicle cockpit, ensuring perfect fitment against windshield, doors, center console, and proper operation of all sub-components.

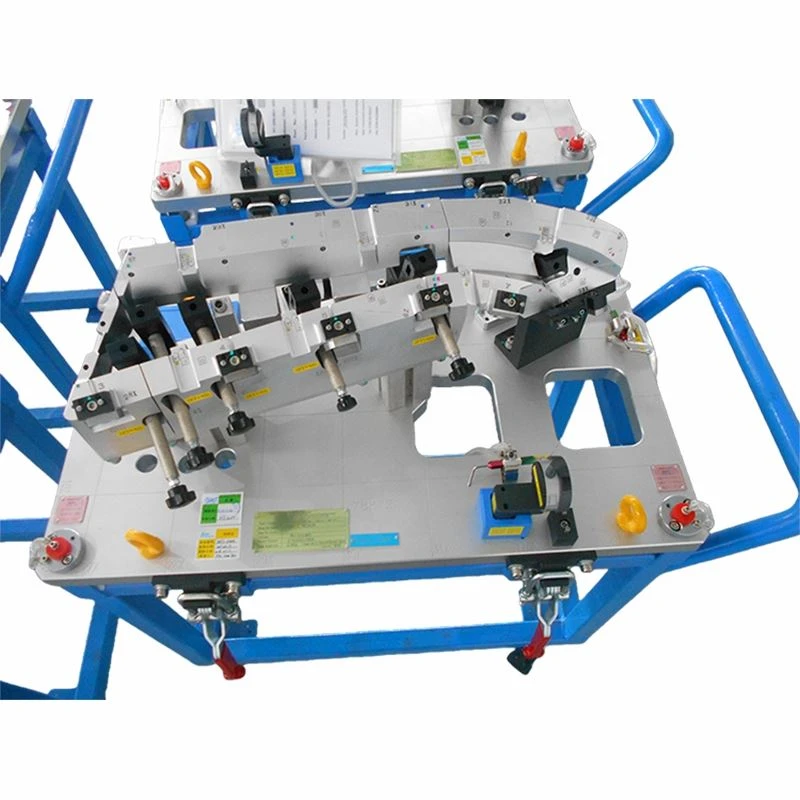

Pillar Parts Checking Fixture

Our Pillar parts checking fixture and gauge is manufactured with precision, meeting the highest standards of attribute gage production.

Key Features of Plastic Part Checking Fixture

Light Construction
Plastic product inspection fixtures components are lightweight, thus they are easy to handle and manipulate in the inspection process. This feature ensures effective construction and use while preventing operator fatigue and speeding workflow.

Durability and Strength
Despite lightweight these plastic inspection fixtures are made from durable engineering plastics- ABS, polycarbonate, or nylon. As all these materials provide satisfactory durability and wear resistance, plastic inspection fixtures will withstand repeated use and never lose their functionality.

Corrosion Resistance
The plastic part Measurement Fixture themselves have excellent internal resistance to corrosion, so they can perfectly be placed in areas where they may come into contact with moisture, chemicals, or other reactive elements. This can increase further the effective life of the fixture.

Customization
Moulding easily and tailoring to particular parts or applications would be available for plastic inspection fixtures. This flexibility would allow any manufacturer to create a range of fixtures with specific requirements tailored to meet different requirements of plastics.

Cost-Effective
Much more so than metal fixtures, plastic inspection components are cheaper to manufacture. Low cost equals a cost-effective solution, especially when used in high volume production or areas employing frequent fixture replacements.

Applications of Plastic Part Checking Fixture

Plastic Component Quality Control

In industries manufacturing plastic components like the automobile or household consumer goods, they are supported by fixtures during inspection for checking dimensions, shapes, and surface finish of the plastic parts.

Plastic Part Checking Fixture Manufacturer

Automotive Industry

Plastic inspection fixtures in automobile manufacturing check the fitting and finishing of the plastic parts in vehicle interiors, such as dashboards, as well as trims and exterior parts.

Plastic Packing Industry

Plastic inspection fixtures judge packings made from plastics, such as bottles, caps, and containers. These checks purport to ensure the right formation and closure of packaging within the requisite safety and usability specifications.

Manufacturing Tolerance

The Flatness of Base Plate

0.05/1000

The Thickness of Base Plate

±0.05mm

The Location Datum

±0.02mm

The Surface

±0.1mm

The Checking Pins and Holes

±0.05mm

Advanced Technologies Used in Plastic Part Checking Fixture

Vehicle datums replication: Firewall, A-pillars, and cross-car beam mounting points.

Gap and flushness measurement: high accuracy using digital gauges.

Functional testing: Moving component operation validation.

Force measurement: Button actuation force testing.

Safety validation: Airbag deployment zone geometry verification.

SPC checking fixture compatibility for statistical process control.

CMM holding fixture integration for automated verification.

Ordering Process

Received the purchasing order

Design

Confirming the drawing/solutions

Prepare the materials

CNC

CMM

Assembling

CMM

Inspection

(3rd part inspection if need)

(Internal/customer on site)

Packing(wooden box)

Delivery

Packaging and Shipping

Packaging	The checking fixture is securely mounted onto a custom wooden or metal skid. It is then wrapped in anti-corrosive VCI film and placed in a reinforced wooden export crate.
Shipping	Shipping by sea, by air, by express are acceptable. According to your requirements.

Our Factory

Raingo-Tech Co., Ltd was founded in 2007, headquartered in Dongguan. We operate four factories in Dongguan, Changsha, and Jakarta, with over 300 employees and an annual capacity of nearly 4,000 fixture sets.

productcate-600-450

FAQ

Q: What is the lead time for a headlight checking fixture?

A: Due to the size and complexity, the typical lead time is 5-8 weeks from design approval to final delivery for this inspection solution.

Q: Is the checking fixture adaptable to future part design changes?

A: Yes. We provide modification services to ensure your checking fixture remains accurate.
Modular Design: Key checking components are built to be easily replaced.
Cost Savings: This allows for affordable updates instead of a full rebuild.
Engineering Changes: We can adapt your fixture to accommodate design revisions.

Q: What's the process for getting the checking fixture installed and operational in our plant?

A: Don't worry, we've got you covered. The checking fixture has special built-in points for cranes and forklifts to lift it. To make setup simple and safe, we'll provide you with detailed guide drawings.

Q: How do you guarantee that this checking fixture will always measure accurately?

A: Each of checking fixture vendor has a dedicated calibration reference point and comes with an official certificate that can be verified when leaving the factory. To ensure long-term accuracy, we recommend calibrating once a year, and we provide this calibration service globally.

Q: How do we move and set up the checking fixture in our factory?

A: It's designed to be easy to move with built-in hooks and forklift slots. We also give you simple instructions with drawings to show you how to set it up safely and correctly. As a professional checking fixture vendor must be learn well about customer checking fixture standards to know customer plant requirements about the checking fixture movements easy and safe.

Q: Do you provide validation documentation for safety-critical measurements?

A: All safety-related measurements include full traceability documentation with GR&R reports and calibration certificates meeting OEM requirements for validation.

We're known as one of the most experienced plastic part checking fixture enterprises in China, featured by quality products and good price. Please feel free to buy plastic part checking fixture in stock here and get quotation from our factory. We also accept customized orders.

manufacturing alignment fixture, plastic lid checking fixture, plastic precision measurement fixture

Plastic Part Checking Fixture

Your Professional Plastic Part Checking Fixture Supplier

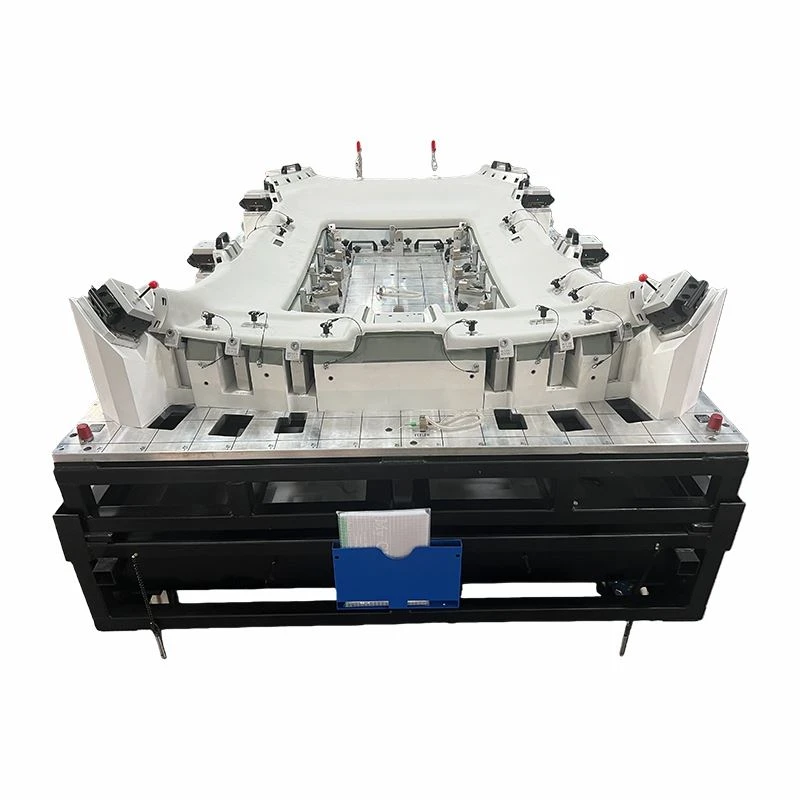

Headliner Checking Fixture
